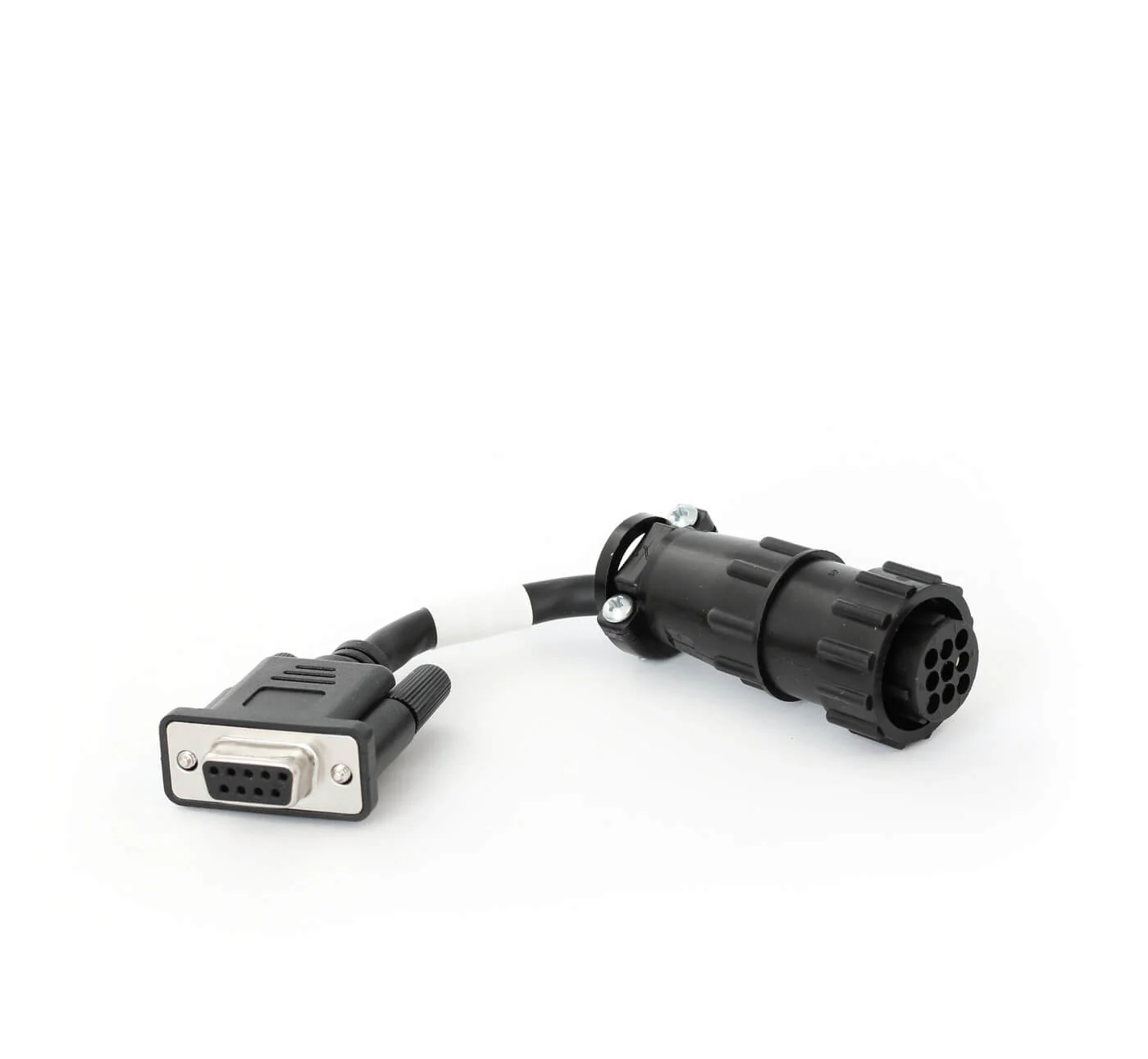

In-Cab-to-DB9 Adapter Cable, LBS [Tractors, ISOBUS]
Do you need to log ISOBUS data from agricultural vehicles like tractors/harvesters?
This in-cab-to-DB9 (LBS) adapter fits most tractors and lets you easily connect your CANedge/CLX000 CAN logger to start recording ISOBUS data.
The cable connects VCC, GND and CAN 1 of the in-cab connector to enable read-access only (while CAN 2 enables read/write access to the same bus).
When buying a CAN logger you can add this as an option for a 40% discount.
| GENERAL | |
|---|---|
| Adapter Cable Length | 15 cm (incl. connectors) |
| Connectors | In-cab (female), 1 x DB9 (female) |
| Temperature | Operating temperature: -20degC to +80degC |
| Weight | 60G |
| Color | Black |
Adapter pinout
| In-Cab | Function | DB9 (female) |
| 2 | CAN 1 L | 2 |
| 4 | CAN 1 H | 7 |
| 7 | VCC | 9 |
| 9 | GND | 3 |
Do you need to log ISOBUS data from agricultural vehicles like tractors/harvesters?
This in-cab-to-DB9 (LBS) adapter fits most tractors and lets you easily connect your CANedge/CLX000 CAN logger to start recording ISOBUS data.
The cable connects VCC, GND and CAN 1 of the in-cab connector to enable read-access only (while CAN 2 enables read/write access to the same bus).
When buying a CAN logger you can add this as an option for a 40% discount.
| GENERAL | |
|---|---|
| Adapter Cable Length | 15 cm (incl. connectors) |
| Connectors | In-cab (female), 1 x DB9 (female) |
| Temperature | Operating temperature: -20degC to +80degC |
| Weight | 60G |
| Color | Black |
Adapter pinout
| In-Cab | Function | DB9 (female) |
| 2 | CAN 1 L | 2 |
| 4 | CAN 1 H | 7 |
| 7 | VCC | 9 |
| 9 | GND | 3 |
