GPS Antenna

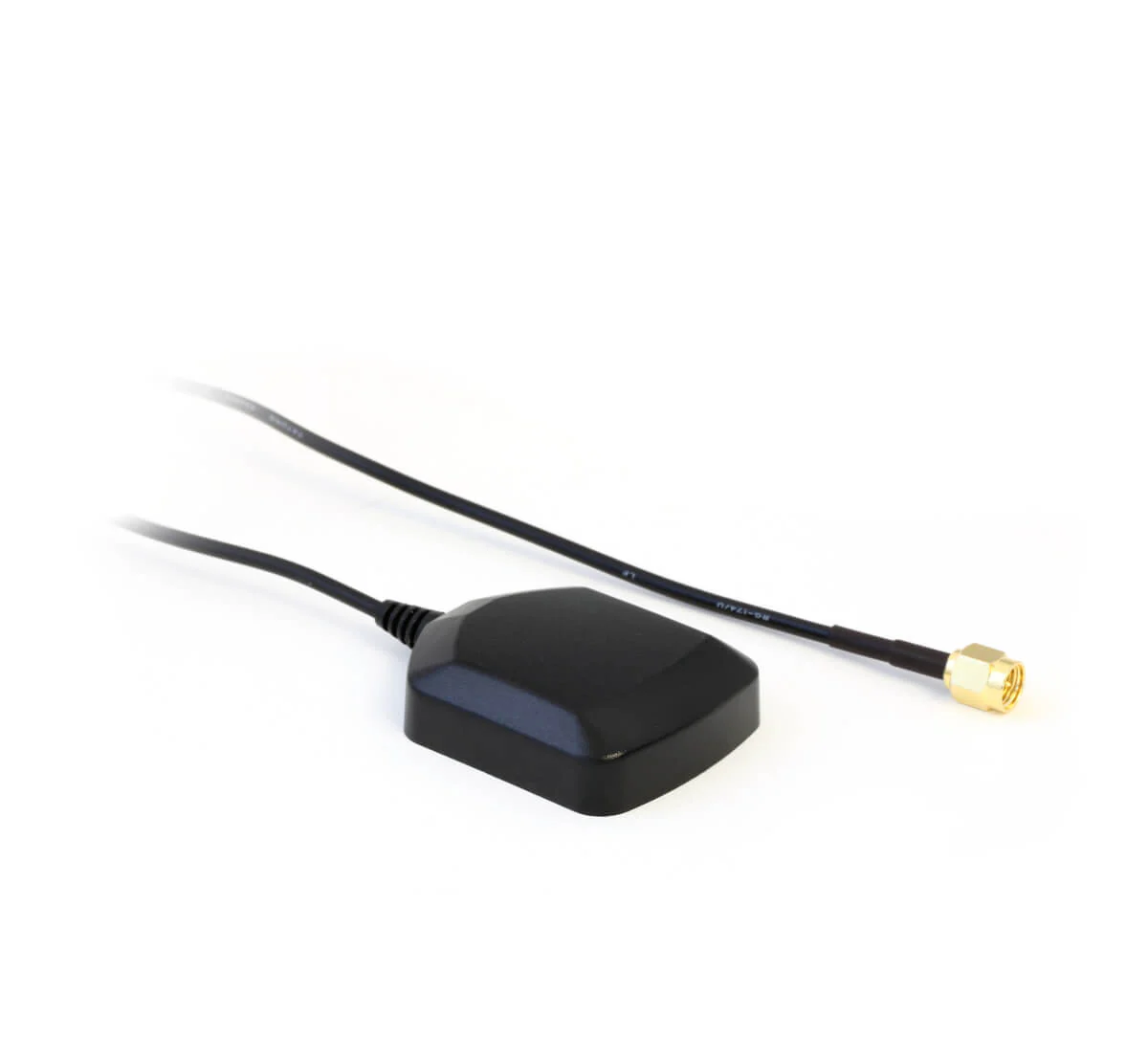

This GPS antenna measures 46 x 38.5 x 13 mm with a 3 meter cable and magnetic mount - learn more below.
When you purchase the CANmod.gps, this active GPS antenna is included in the default price.
| GENERAL | |
|---|---|
| ELECTRICAL | |
| Frequency range | 1575 +/- 3 MHz (GPS) |
| VSWR | max 2.0 |
| Impedance | 50 Ohm |
| Polarization | RHCP |
| Gain | 25 dB +/- 3 |
| DC Voltage | 3 V DC to 5 V DC |
| MECHANICAL | |
| Mounting | Magnetic mount |
| Dimensions | 46 x 38.5 x 13 mm (antenna) |
| Cable length | 3 meter |
| IP rating | 65 |
| Operating temperature | -40 degC to 80 degC |
This GPS antenna measures 46 x 38.5 x 13 mm with a 3 meter cable and magnetic mount - learn more below.
When you purchase the CANmod.gps, this active GPS antenna is included in the default price.
| GENERAL | |
|---|---|
| ELECTRICAL | |
| Frequency range | 1575 +/- 3 MHz (GPS) |
| VSWR | max 2.0 |
| Impedance | 50 Ohm |
| Polarization | RHCP |
| Gain | 25 dB +/- 3 |
| DC Voltage | 3 V DC to 5 V DC |
| MECHANICAL | |
| Mounting | Magnetic mount |
| Dimensions | 46 x 38.5 x 13 mm (antenna) |
| Cable length | 3 meter |
| IP rating | 65 |
| Operating temperature | -40 degC to 80 degC |
$17.32
Original: $57.73
-70%GPS Antenna—
$57.73
$17.32Description
This GPS antenna measures 46 x 38.5 x 13 mm with a 3 meter cable and magnetic mount - learn more below.
When you purchase the CANmod.gps, this active GPS antenna is included in the default price.
| GENERAL | |
|---|---|
| ELECTRICAL | |
| Frequency range | 1575 +/- 3 MHz (GPS) |
| VSWR | max 2.0 |
| Impedance | 50 Ohm |
| Polarization | RHCP |
| Gain | 25 dB +/- 3 |
| DC Voltage | 3 V DC to 5 V DC |
| MECHANICAL | |
| Mounting | Magnetic mount |
| Dimensions | 46 x 38.5 x 13 mm (antenna) |
| Cable length | 3 meter |
| IP rating | 65 |
| Operating temperature | -40 degC to 80 degC |
