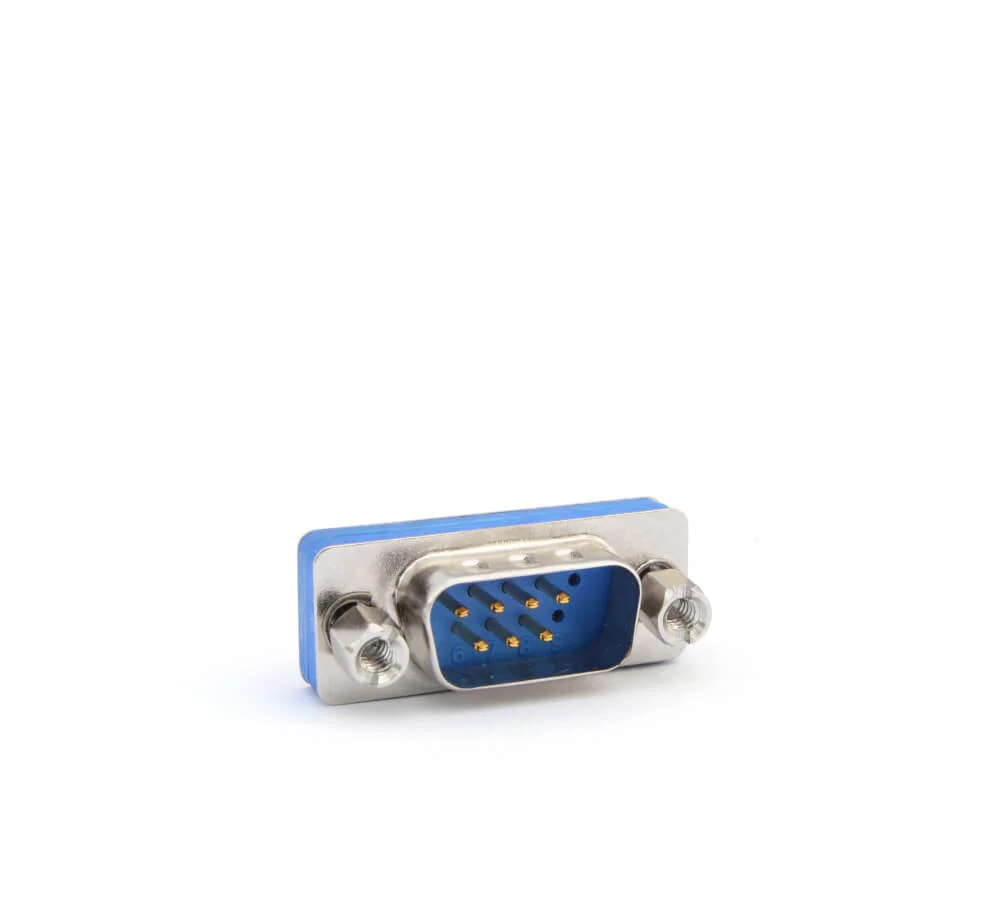

DB9 Power-Pin-Remover (No Pin 5 & 9)
Need to log data via a CANedge channel 2?
The CANedge lets you log CAN data from 2 channels in parallel. Input power must be supplied via channel 1 - not channel 2 (CH2).
To use standard adapters cables for CH2, you can add the DB9 power-pin-remover between your cable and the CANedge CH2.
The DB9 adapter connects all pins except pin 9 (power supply). With this, you can use standard adapter cables for the 2nd port.
Learn more below - or buy now!
CUT POWER
Pins 5 & 9 are removed to easily cut input power/ground
COMBINE
Non-terminated and can be combined with other adapters
STANDARDIZE
Lets you use standard DB9 adapter cables without power
SOLID LOCKS
DB9 screw locks ensure a solid connection
COMPACT
The small adapter lets you maintain a compact system
1Y WARRANTY
We offer a 1-year warranty on all our products
Check out our tech specs above - or buy now!
Do you have any questions?
Contact us| GENERAL | |
|---|---|
| Connectors | 9-pin D-sub (DB9) male-to-female |
| Temperature | Operating temperature: -20degC to +80degC |
| Weight | 10G |
Adapter pinout
| DB9 (male) | DB9 (female) |
| 1 | 1 |
| 2 | 2 |
| 3 | 3 |
| 4 | 4 |
| 5 | N/C |
| 6 | 6 |
| 7 | 7 |
| 8 | 8 |
| 9 | N/C |
