DB25-to-4x-DB9: 4 x CAN Adapter
Need to connect 4 x CAN to your CANmod.router?
The CANmod.router lets you receive/transmit CAN traffic from/to 4 CAN buses via 1 CAN bus (or USB).

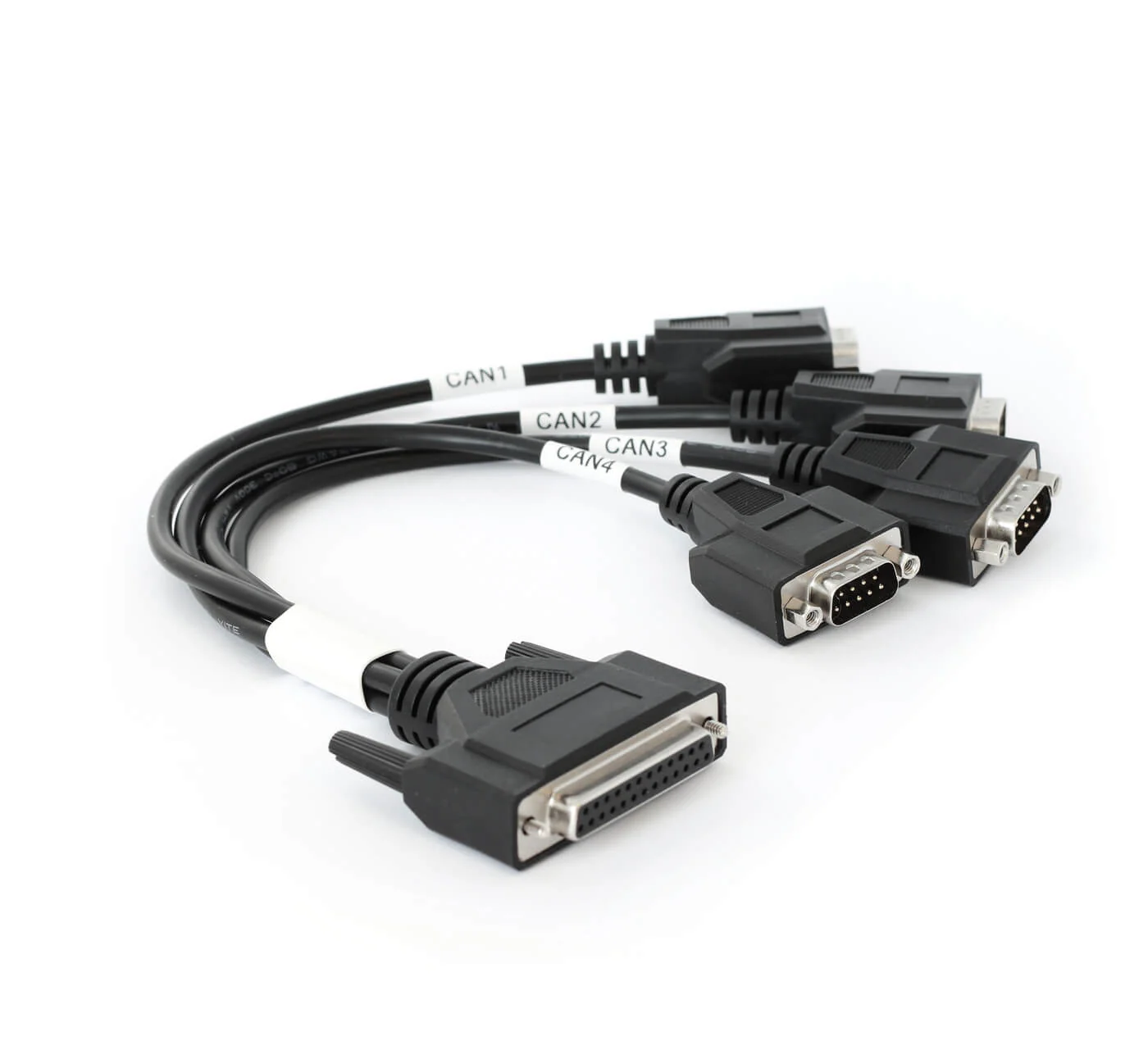

This DB25-to-4x-DB9 adapter cable lets you directly connect your CAN buses to the CANmod.router using our standard DB9 adapter cables.
You can add this as an option when purchasing a CANmod.router.
| GENERAL | |
|---|---|
| Adapter Cable Length | 20 cm |
| Connectors | DB25 (female), 4 x DB9 (male) |
| Temperature | Operating temperature: -20degC to +80degC |
| Weight | 210G |
| Color | Black |
Adapter pinout
| DB25 (female) | Function | DB9 CAN-S1 | DB9 CAN-S2 | DB9 CAN-S3 | DB9 CAN-S4 |
| 1 | CAN-S4 H | 7 | |||
| 2 | CAN-S4 L | 2 | |||
| 14 | CAN-S4 GND | 3 | |||
| 18 | CAN-S3 H | 7 | |||
| 17 | CAN-S3 L | 2 | |||
| 5 | CAN-S3 GND | 3 | |||
| 22 | CAN-S2 H | 7 | |||
| 21 | CAN-S2 L | 2 | |||
| 9 | CAN-S2 GND | 3 | |||
| 12 | CAN-S1 H | 7 | |||
| 13 | CAN-S1 L | 2 | |||
| 25 | CAN-S1 GND | 3 |
