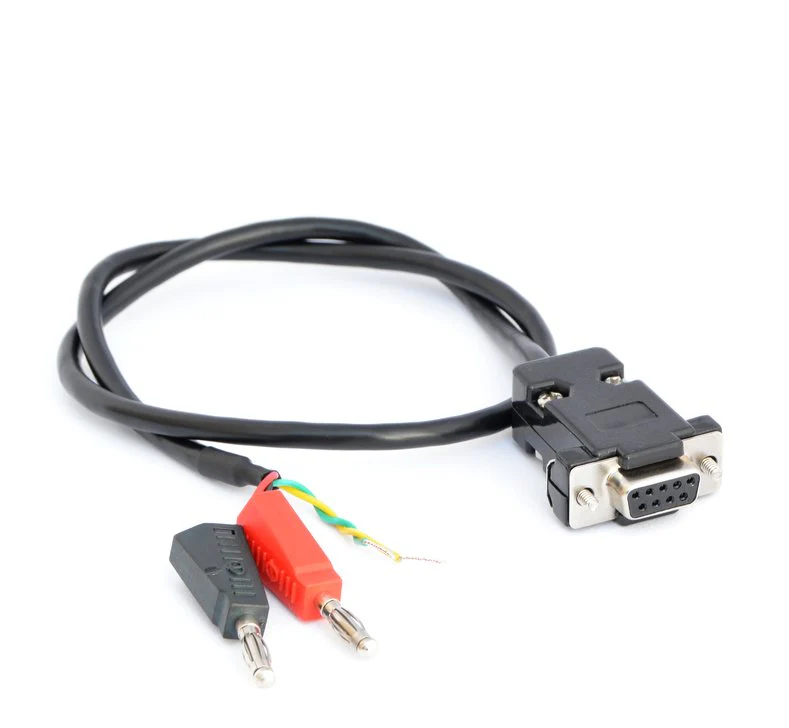

Generic-to-DB9 Adapter Cable
Need to log data from a CAN bus application with a non-standard connector?
In this case, we strongly recommend to get this generic-to-DB9 adapter, which lets you get started quickly when creating your own custom adapter cable. Save time and minimize errors - so you can get started logging CAN data with your CANedge/CLX000 CAN logger!
When buying a CAN logger you can add this adapter as an option for a 40% discount.
CUSTOMIZE
Quickly create custom adapter cables for your CAN logger
BANANA PLUGS
Detachable banana plugs for power supply via e.g. test equipment
SOLID CABLES
Rugged 0.5 meter quality cable with 22 AWG (0.5 mm2) thickness
ROHS
Cables are RoHS compliant and tested in Denmark
1Y WARRANTY
We offer a 1-year warranty on all our products
About the generic adapter
The generic adapter cable is useful for cases where neither the J1939 or OBD2 adapters can be used directly (or the CAN logger's built-in DB9 connector).
Several applications require a custom cable. Here, the generic adapter can be used as a starting point. Further, the banana plugs are useful for powering the device in test setups.
use cases
Check out our tech specs, use cases or FAQ - or buy now!
Do you have any questions?
Contact us| GENERAL | |
|---|---|
| Adapter Cable Length | 50 cm |
| Adapter DB9 Pins | In accordance with CiA 303-1 |
| Cable Thickness | 22 AWG (0.50 mm2) |
| Connectors | 9-pin D-sub (DB9) female to open CAN L/H wires & positive/ground power supply banana plugs |
| Temperature | Operating temperature: -20degC to +80degC |
| Weight | 100G |
| Color | Black |
Adapter pinout
| DB9 (female) | Generic (wire) |
| 1 | N/C |
| 2 | CAN low wire (labeled) |
| 3 | Brown/Black |
| 4 | N/C |
| 5 | N/C |
| 6 | N/C |
| 7 | CAN high wire (labeled) |
| 8 | N/C |
| 9 | White |
Below is a use case example where the generic-to-DB9 adapter is useful:
Custom connector robotics application
Need to log data from a production robot with a custom connector?
Within industrial automation you will often encounter the use of the CiA DB9 connector, meaning you can directly connect a CANedge/CLX000 CAN logger. However, in some cases another connector is used (which we may not offer a direct adapter for). In these cases, the fastest way to connect your CANedge/CLX000 is to create your own adapter based on the generic-to-DB9 cable. This way you'll save time and minimize the customization required - as well as reduce the risk of errors.
We're always eager to learn what custom cable adapters you create using the generic cable. Let us know and we may start offering the cables on our site if there's sufficient demand.
