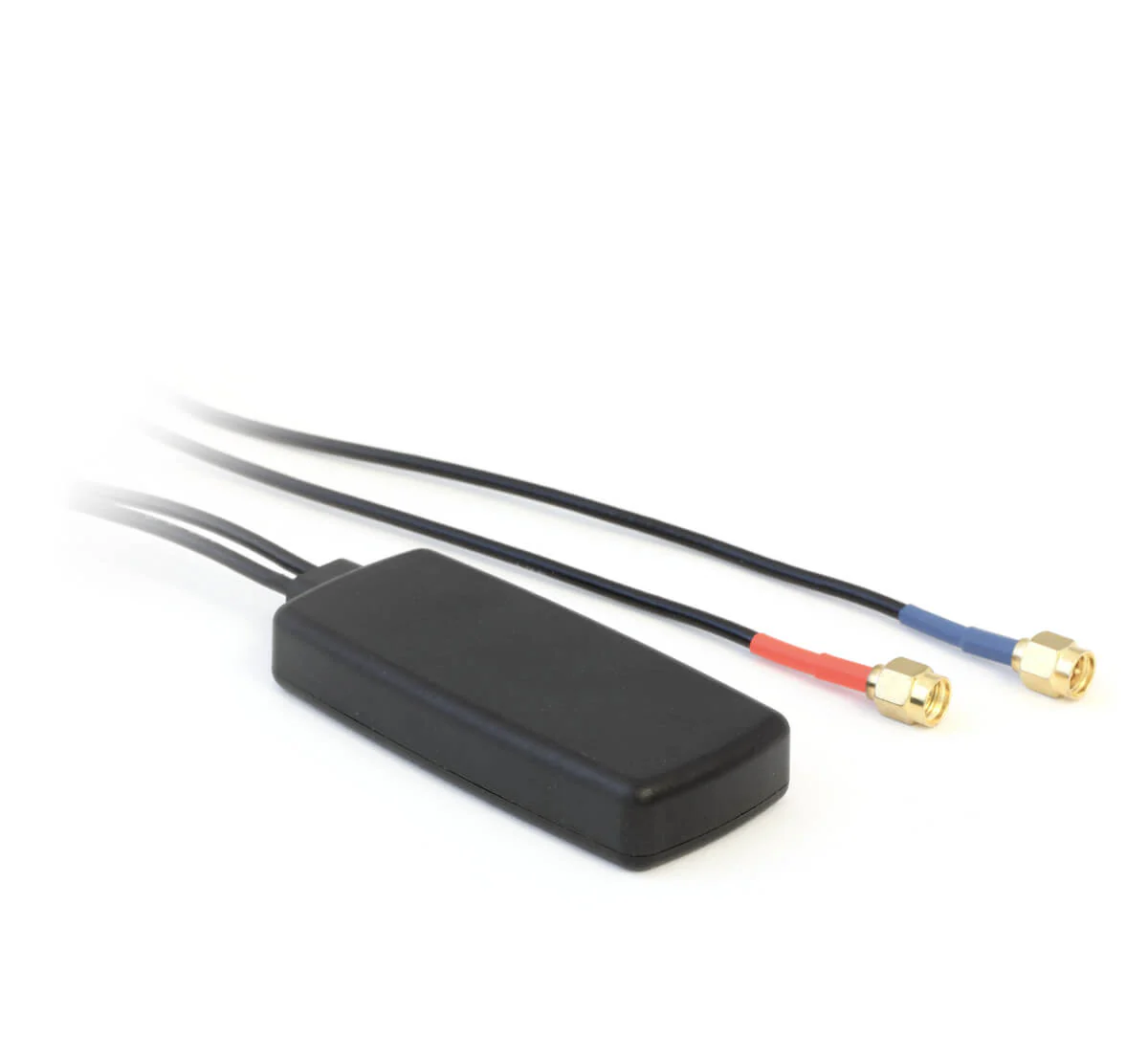

This 2-in-1 antenna covers WiFi (2.4 GHz) and GPS/GLONASS/Galileo (1575-1606 MHz). It comes in a compact 83 x 35 x 13.3 mm IP67 housing with adhesive mounting.

The antenna provides two 3 meter cables with SMA connectors (red: WiFi, blue: GNSS), enabling flexible deployments.

When you purchase the CANedge2 this antenna can be selected as an option.

• TECH SPECS

ELECTRICAL (WiFi)
Frequency range	698-960 MHz, 1710-2170 MHz, 2500-2700 MHz
Frequency bands	700/850/900 MHz, 1700/1800/1900/2100 MHz, 2600 MHz
Efficiency	53%, 49%, 25%
VSWR	1.8:1, 1.3:1, 2.0:1
Peak gain	2.4 dBi, 1.3 dBi, 0.4 dBi
Average gain	-2.7 dB, -3.0 dB, -5.9 dB
Impedance	50 Ohm
Polarization	Linear
Radiation	Omni-directional
ELECTRICAL (GNSS)
Frequency range	1575.42 MHz, 1598-1606 MHz
Frequency bands	1575 MHz, 1602 MHz
Return loss	Below -15 dB
VSWR	Below 1.4:1 dB
Impedance	50 Ohm
Radiation Pattern	Hemispherical
Patch size	25 x 25 x 4 mm
Polarization	RHCP
Saw Filter	Pre filter
Active Gain	28 dB @ 2.7 V
Noise Figure	1.5 dB Typ
Voltage	1.5 - 3.6 V
Current	9 mA Typ
Power Consumption	24.3 mW Typ
ESD Protection	2kV
MECHANICAL
Dimensions	83 x 35 x 13.3 mm
Cable length	3 meters (2 cables)
Connector	2 x SMA male (red: WiFi, blue: GNSS)
IP rating	67
Operating temperature	-40 degC to +85 degC
Mounting type	Adhesive mount (mounting patch included)
Radome Type	ABS UV Stable
