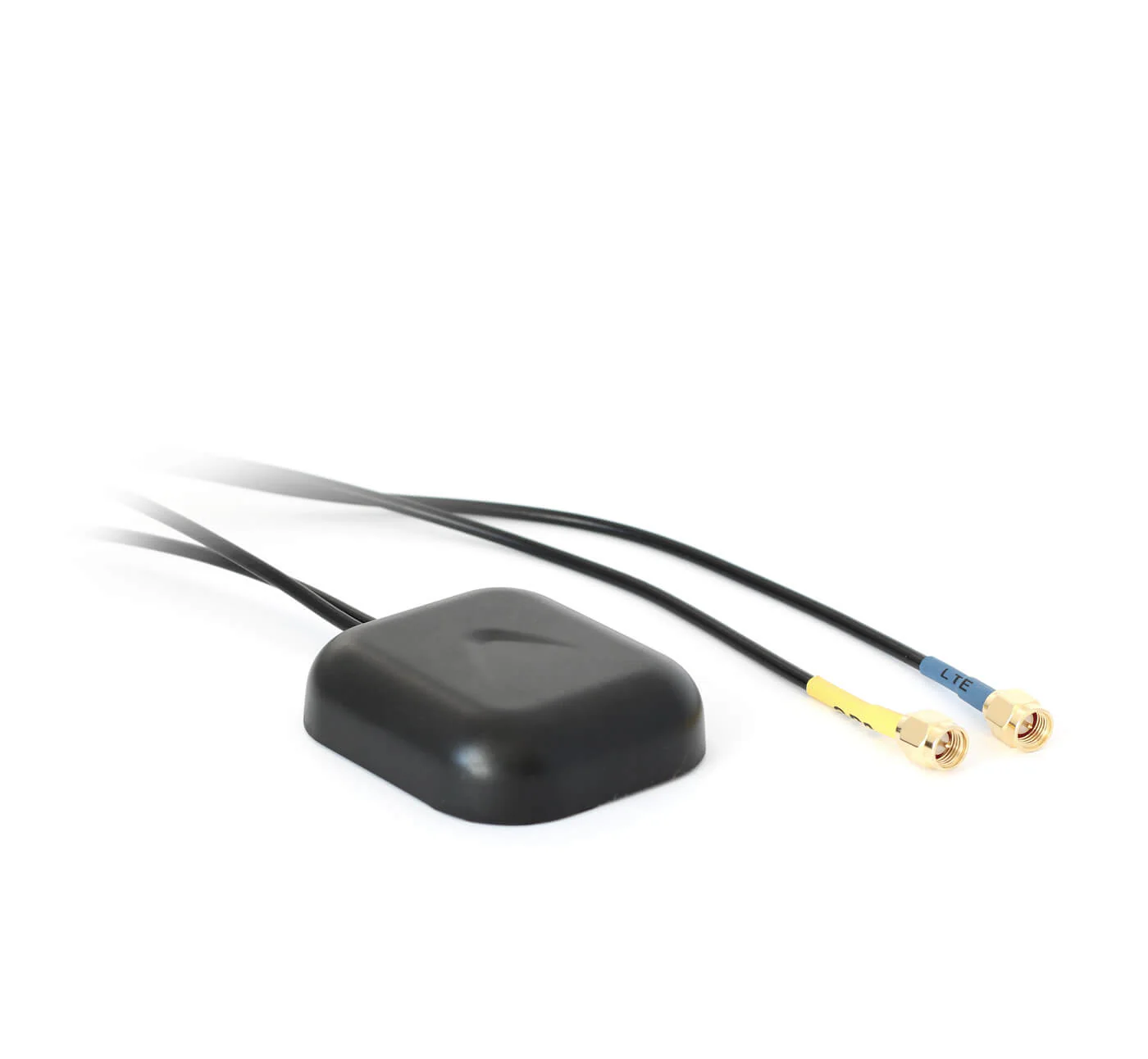

2-in-1 antenna (3G/4G LTE + GPS)
This 2-in-1 antenna covers 3G/4G (698-2700 MHz) and GPS (1575 MHz). It comes in a compact 52 x 60 x 16 mm IP66 housing with a magnet mount.
The antenna provides two 3 meter cables with SMA connectors (blue: LTE, yellow: GPS), enabling flexible deployments.
When you purchase the CANedge3 this antenna can be selected as an option.
| ELECTRICAL (LTE) | |
|---|---|
| Frequency range | 698-2700 MHz |
| Efficiency | 600 MHz (64%), 698 MHz (64%), 960 MHz (52%), 1710 MHz (60%), 2170 MHz (80%), 2300 MHz (59%), 2700 MHz (60%) |
| VSWR | LTE: 600-698 MHz (3.0), 960-2700 MHz (2.0) |
| Impedance | 50 Ohm |
| Power Consumption | 5V-2 mA (LTE) |
| ELECTRICAL (GPS) | |
| Frequency range | 1575.42 MHz |
| Impedance | 50 Ohm |
| Power Consumption | 3V-10 mA (GPS) |
| MECHANICAL | |
| Dimensions | 52 x 60 x 15 mm |
| Cable length | 3 meters (2 cables) |
| Connector | 2 x SMA male (blue: LTE, yellow: GPS) |
| IP rating | 65 |
| Operating temperature | -40 degC to +85 degC |
| Mounting type | Magnet mount |
| Radome Type | ABS |
This 2-in-1 antenna covers 3G/4G (698-2700 MHz) and GPS (1575 MHz). It comes in a compact 52 x 60 x 16 mm IP66 housing with a magnet mount.
The antenna provides two 3 meter cables with SMA connectors (blue: LTE, yellow: GPS), enabling flexible deployments.
When you purchase the CANedge3 this antenna can be selected as an option.
| ELECTRICAL (LTE) | |
|---|---|
| Frequency range | 698-2700 MHz |
| Efficiency | 600 MHz (64%), 698 MHz (64%), 960 MHz (52%), 1710 MHz (60%), 2170 MHz (80%), 2300 MHz (59%), 2700 MHz (60%) |
| VSWR | LTE: 600-698 MHz (3.0), 960-2700 MHz (2.0) |
| Impedance | 50 Ohm |
| Power Consumption | 5V-2 mA (LTE) |
| ELECTRICAL (GPS) | |
| Frequency range | 1575.42 MHz |
| Impedance | 50 Ohm |
| Power Consumption | 3V-10 mA (GPS) |
| MECHANICAL | |
| Dimensions | 52 x 60 x 15 mm |
| Cable length | 3 meters (2 cables) |
| Connector | 2 x SMA male (blue: LTE, yellow: GPS) |
| IP rating | 65 |
| Operating temperature | -40 degC to +85 degC |
| Mounting type | Magnet mount |
| Radome Type | ABS |
Original: $23.09
-70%$23.09
$6.93Description
